Error analyses on adaptive meshes for the resolution of evolutionary multi-scale PDEs

Marc Massot

The present work is the result of a team work involving

• Thomas Bellotti (CNRS, EM2C - Fédé Maths CS)
• Loïc Gouarin (École polytechnique, CMAP)
• Josselin Massot (École polytechnique, CMAP)
• Pierre Matalon (École polytechnique, CMAP)
• Laurent Séries (École polytechnique, CMAP)
• Christian Tenaud (CNRS, EM2C - Fédé Maths CS)

website of the team

https://github.com/hpc-maths/

Mesh adaptation and error control

Burgers equation - sinus problem

\[ \partial_t u + \partial_x \left ( f(u) \right ) = 0, \quad t \geq 0, \quad x \in \mathbb{R}, \qquad f(u) = \dfrac{u^2}{2}, \]

Consider the Cauchy problem with initial conditions:

\[ u^0(x) = \frac{1}{2} (1+\sin(\pi(x-1))) \quad x \in [-1,1] \]

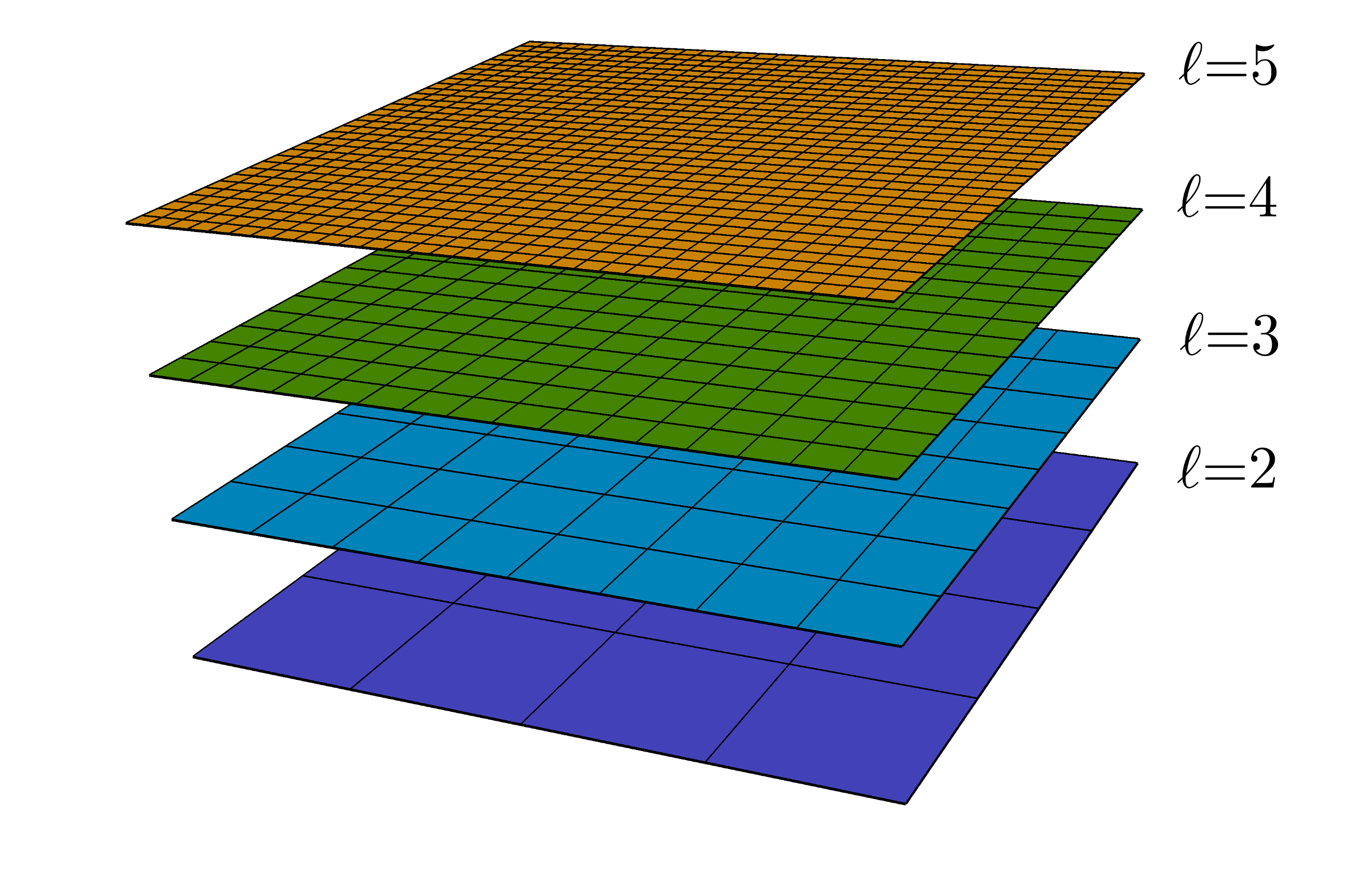

Adaptive Multiresolution

• Minimum level \(\underline{\ell}\) and maximum level \(\bar{\ell}\).
• Cells: \[ C_{\ell, k}:=\prod_{\alpha=1}^d\left[2^{-\ell} k_\alpha, 2^{-\ell}\left(k_\alpha+1\right)\right] \]
• Finest step: \(\Delta x=2^{-\bar{\ell}}\).
• Level-wise step: \(\Delta x_{\ell}:=2^{-\ell}=2^{\Delta \ell} \Delta x\).

Wavelets

Decomposition of the solution on a wavelet basis [Daubechies, ’88], [Mallat, ’89] to measure its local regularity. “Practical” approach by [Harten, ’95], [Cohen et al., ’03].

Projection operator

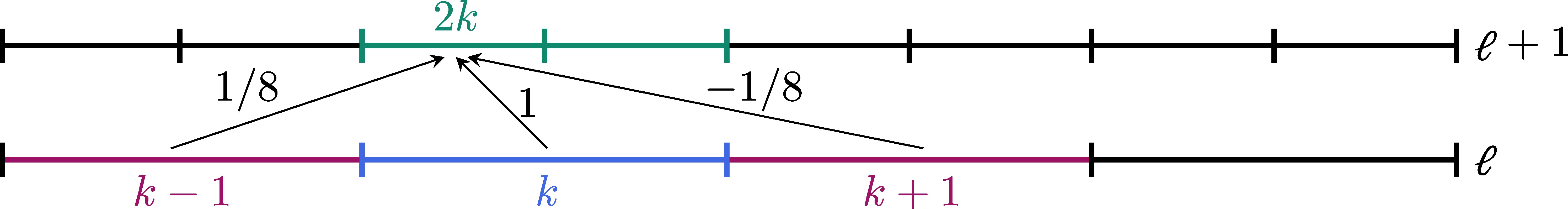

Prediction operator at order \(2 s +1\)

\[ {\hat f}_{\ell+1,2 k}={f}_{\ell, k}+\sum_{\sigma=1}^s \psi_\sigma\left({f}_{\ell, k+\sigma}-{f}_{\ell, k-\sigma}\right) \]

Details are regularity indicator \[ {\mathrm{d}}_{\ell, {k}}:={f}_{\ell, {k}}-{\hat{f}}_{\ell, {k}} \]

Let \(f \in W^{\nu, \infty}\) (neigh. of \(C_{\ell, k}\) ), then \[ \left|{\mathrm{d}}_{\ell, k}\right| \lesssim 2^{-\ell \min (\nu, 2 s +1)}|f|_{W^{\min (\nu, 2 s +1), \infty}} \]

Fast wavelet transform:

means at the finest level can be recast as means at the coarsest level + details \[ \begin{array}{rlr} {f}_{\overline{\ell}} & \Longleftrightarrow & \left({f}_{\underline{\ell}}, {{d}}_{\underline{\ell} +1}, \ldots, {d}_{\bar{\ell}}\right)\\ \end{array} \]

Mesh coarsening (static)

Local regularity of the solution allows to select areas to coarsen

\[ {{f}}_{\bar{\ell}} \rightarrow \left({f}_{\underline{\ell}}, {\mathbf{d}}_{\underline{\ell}+1}, \ldots, {\mathbf{d}}_{\bar{\ell}}\right) \rightarrow \left({f}_{\underline{\ell}}, {\tilde{\mathbf{d}}}_{\underline{\ell}+1}, \ldots, \tilde{{\mathbf{d}}}_{\bar{\ell}}\right) \rightarrow {\tilde{{f}}}_{\bar{\ell}} \] \[ \tilde{{\mathrm{d}}}_{\ell, k}= \begin{cases}0, & \text { if } \left|{\mathbf{d}}_{\ell, k}\right| \leq \epsilon_{\ell}=2^{-d \Delta \ell} \epsilon, \quad \rightarrow \quad\left\|{\mathbf{f}}_{\bar{\ell}}-\tilde{{\mathbf{f}}}_{\bar{\ell}}\right\|_{\ell^p} \lesssim \epsilon \\ {\mathrm{d}}_{\ell, k}, & \text { otherwise} \end{cases} \]

Set a small (below \(\epsilon_{\ell}\)) detail to zero \(\equiv\) erase the cell \(C_{\ell, k}\) from the structure

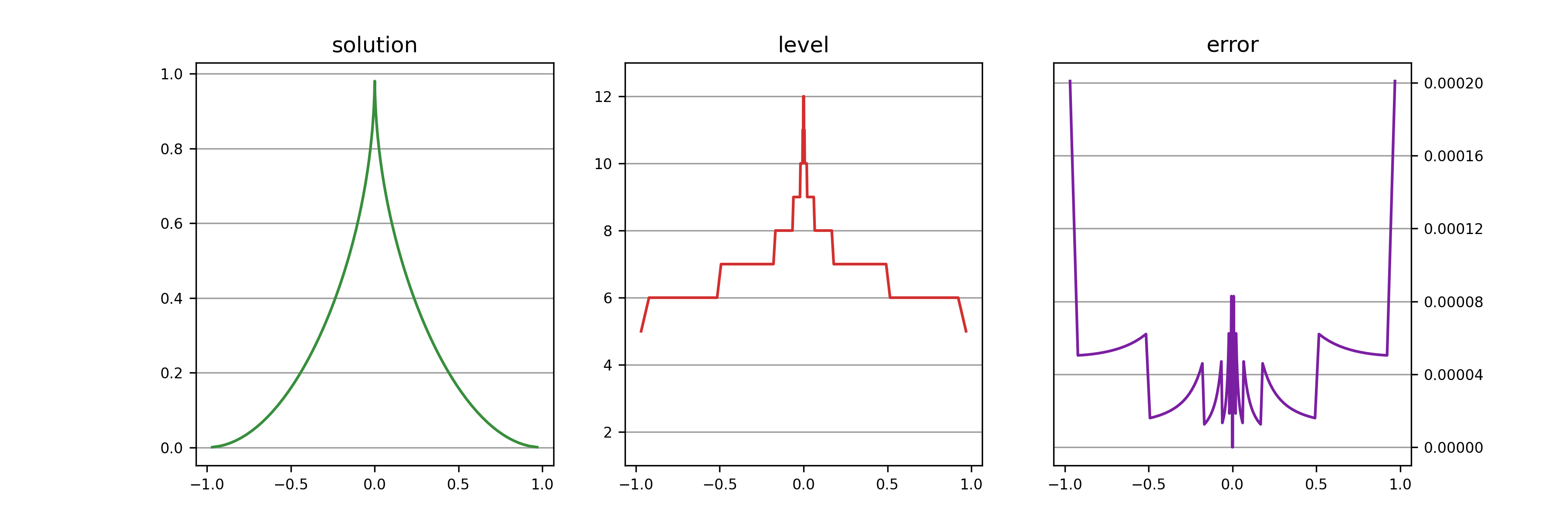

Examples

Equation

\[ f(x) = 1 - \sqrt{\left| sin \left( \frac{\pi}{2} x \right) \right|} \; \text{for} \; x\in[-1, 1] \]

min level	1
max level	12
ε	10-3
compression rate	96.29%
error	0.00053

Time evolution of PDEs

• Finite volumes with global time step \(\Delta t = \Lambda(\Delta x)\)

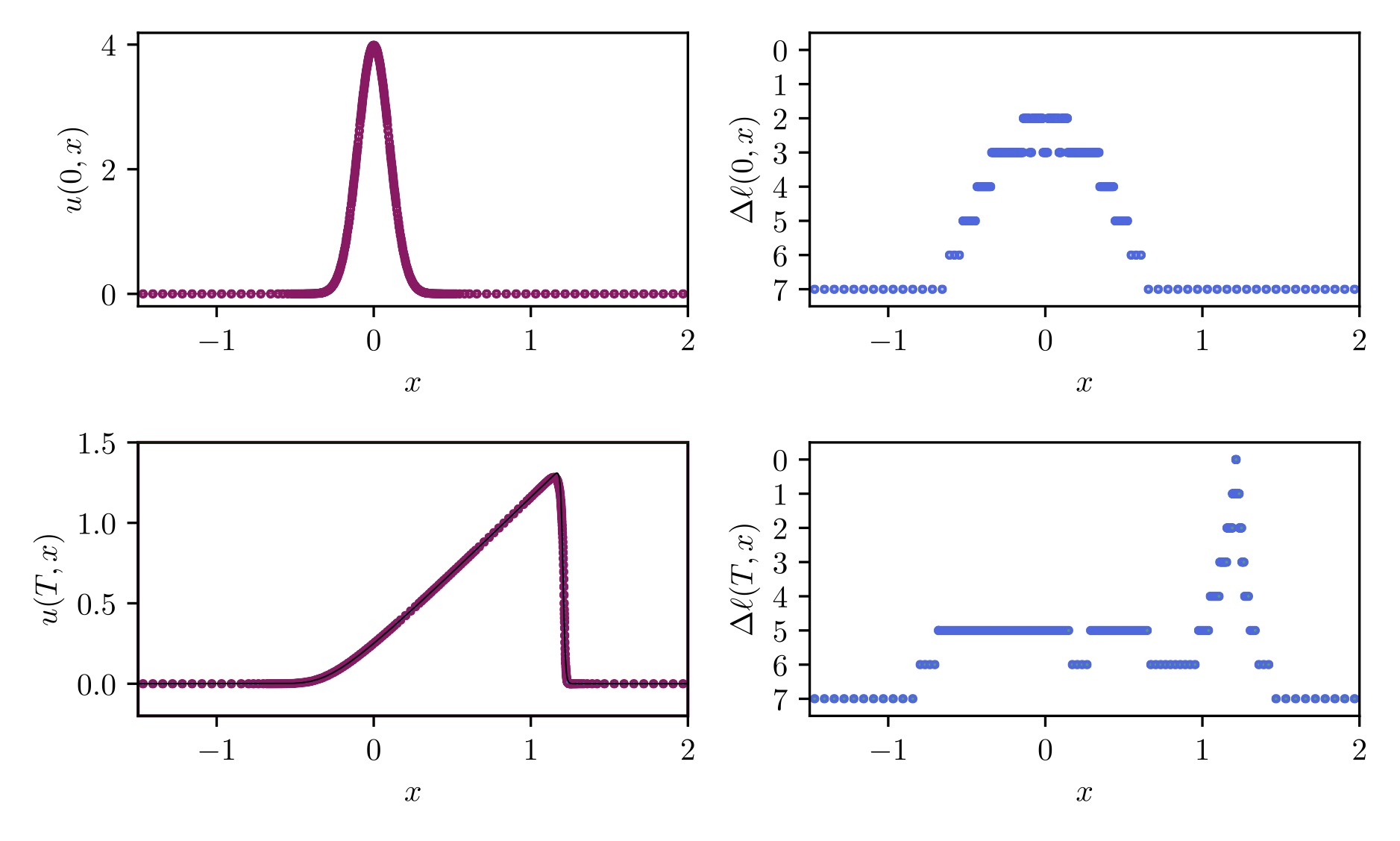

• Use dynamic mesh refinement

Mesh updated using “old” information at time \(t\) to accommodate the one at time \(t + \Delta t\)

• Propagation of information : add security cells
• Formation of singularities : (regularity index: \(\nu =0\), \(\mu = \min(\nu,2 s +1)\)) refine if \[ \left|{\mathbf{d}}_{\ell, k}\right| \geq \epsilon_{\ell}\,2^{d+\mu} \]

Finite volumes / conservation / order

Flux evaluation at interfaces between levels

Using the prediction operator allows to evaluate fluxes at the same level

Finite volume method

We use a Godunov flux for the small hat problem

Numerical Analysis and Modified Equations

Linear scalar transport equation

In this work, we are concerned with the numerical solution of the Cauchy problem associated with the linear scalar conservation law

\[ \partial_t u(t, x)+V \partial_x u(t, x)=0, \quad(t, x) \in \mathbb{R}^{+} \times \mathbb{R} \]

where \(V\) is the transport velocity, taken \(V>0\) without loss of generality. we consider 1 d problems. The extension to \(2\mathrm{~d}\) / \(3\mathrm{~d}\) problems is straightforward and usually done by tensorization [Bellotti2022] and yields analogous conclusions.

The discrete volumes are \[ C_{\ell, k}:=\left[2^{-\ell} k, 2^{-\ell}(k+1)\right], \quad k \in \{ 0,2^{\ell}-1 \}, \] for any \(\ell \in \{ \underline{\ell}, \bar{\ell} \}\). The measure of each cell at level \(\ell\) is \(\Delta x_{\ell}:=2^{-\ell}\) and we shall indicate \(\Delta x:=\Delta x_{\bar{\ell}}\). The cell centers are \(x_{\ell, k}:=\) \(2^{-\ell}(k+1 / 2)\). Finally, we shall indicate \(\Delta \ell:=\bar{\ell}-\ell\), hence \(\Delta x_{\ell}=2^{\Delta \ell} \Delta x\).

Finite Volume scheme

Finite Volume scheme at the finest level of resolution \(\bar{\ell}\) for any cell of indices \(\bar{k} \in \{ 0,2^{\bar{\ell}}-1 \}\). Explicit schemes read:

\[ \mathrm{v}_{\bar{\ell}, \bar{k}}^{n+1}=\mathrm{v}_{\bar{\ell}, \bar{k}}^n-\frac{\Delta t}{\Delta x}\left(\Phi\left(\mathrm{v}_{\bar{\ell}, \bar{k}+1 / 2}^n\right)-\Phi\left(\mathrm{v}_{\bar{\ell}, \bar{k}-1 / 2}^n\right)\right) \]

where we utilize the same linear numerical flux for the left and the right flux (conservativity) \[ \Phi\left(\mathbf{v}_{\bar{\ell}, \bar{k}-1 / 2}\right):=V \sum_{\alpha=\underline{\alpha}}^{\bar{\alpha}} \phi_\alpha \mathbf{v}_{\bar{\ell}, \bar{k}+\alpha}, \quad \Phi\left(\mathbf{v}_{\bar{\ell}, \bar{k}+1 / 2}\right):=V \sum_{\alpha=\underline{\alpha}}^{\bar{\alpha}} \phi_\alpha v_{\bar{\ell}, \bar{k}+1+\alpha} \]

Modified equations

[Carpentier et al 97] or Cauchy-Kowalewski procedure [Harten et al 87]

\[ \partial_t u\left(t^n, x_{\bar{\ell}, \bar{k}}\right)+V \partial_x u\left(t^n, x_{\bar{\ell}, \bar{k}}\right)=\sum_{h=2}^{+\infty} \Delta x^{h-1} \sigma_h \partial_x^h u\left(t^n, x_{\bar{\ell}, \bar{k}}\right) \]

• Upwind scheme \[ \partial_t u+V \partial_x u=\frac{\Delta x V}{2}(1-\lambda V) \partial_{x x} u+O\left(\Delta x^2\right) \]
• Lax-Wendroff scheme \[ \partial_t u+V \partial_x u=-\frac{\Delta x^2 V}{6}\left(1-\lambda^2 V^2\right) \partial_x^3 u+O\left(\Delta x^3\right) \]
• OSMP-3 scheme \[ \partial_t u+V \partial_x u=\frac{\Delta x^3 V}{24}\left(-\lambda^3 V^2+2 \lambda^2 V^2+\lambda V-2\right) \partial_x^4 u+O\left(\Delta x^4\right) \]

How to include MRA I

We introduce the reconstruction operator \(\hat{s}\) instead of \(s\) on the cells \(\left(\bar{\ell}, 2^{\Delta \ell} k+\delta\right)\) for any \(\delta \in \mathbb{Z}\) at the finest level

• \(\hat{s}=s\) : exact local flux reconstruction [Cohen et al. 2003].
• \(\hat{s}=0\) but \(s>0\), direct evaluation or naive evaluation [Hovhannisyan et al 2010].

\[ \mathbf{w}_{\bar{\ell}, \bar{k}}^{n+1}=\mathbf{w}_{\bar{\ell}, \bar{k}}^n-\frac{\Delta t}{\Delta x}\left(\Phi\left(\hat{\hat{\mathbf{w}}}_{\bar{\ell}, \bar{k}+1 / 2}^n\right)-\Phi\left(\hat{\hat{\mathbf{w}}}_{\bar{\ell}, \bar{k}-1 / 2}^n\right)\right) \] \[ \Phi\left(\hat{\hat{\mathbf{w}}}_{\bar{\ell}, \bar{k}-1 / 2}\right):=V \sum_{\alpha=\underline{\alpha}}^{\bar{\alpha}} \phi_\alpha \hat{\hat{\mathbf{w}}}_{\bar{\ell}, \bar{k}+\alpha} \]

How to include MRA II

Let now \((\ell, k) \in S\left(\tilde{\Lambda}^{n+1}\right)\), taking the projection yields the multiresolution scheme

\[ \mathbf{w}_{\ell, k}^{n+1}=\mathbf{w}_{\ell, k}^n-\frac{\Delta t}{\Delta x_{\ell}}\left(\Phi\left(\hat{\hat{\mathbf{w}}}_{\bar{\ell}, 2^{\Delta \ell}(k+1)+1 / 2}^n\right)-\Phi\left(\hat{\hat{\mathbf{w}}}_{\bar{\ell}, 2^{\Delta \ell} k-1 / 2}^n\right)\right) \]

\[ \Phi\left(\hat{\hat{\mathbf{w}}}_{\bar{\ell}, 2^{\Delta \ell} k-1 / 2}\right):=V \sum_{\alpha=\underline{\alpha}}^{\bar{\alpha}} \phi_\alpha \hat{\hat{\mathbf{w}}}_{\bar{\ell}, 2^{\Delta \ell} k+\alpha} \]

Some information is loss because of the averaging procedure: two different schemes we can consider for the computation of the modified equations.

Theorem

The local truncation error of the reference Finite Volume scheme and the one of the adaptive Finite Volume scheme are the same up to order \(2\hat{s}+1\) included.

Modified equations including MRA

This result establishes at which order the modified equations of the reference scheme are perturbed by the introduction of the adaptive scheme. However, it does not characterize the terms in the modified equations above order \(2\hat{s}+1\) in \(\Delta x\) (symbolic computations).

• Upwind scheme (original) \[ {\color{blue}{% \partial_t u+V \partial_x u=\frac{\Delta x V}{2}(1-\lambda V) \partial_{x x} u+O\left(\Delta x^2\right) }} \]
• Upwind scheme with MRA \[ \begin{array}{lr} \partial_t u+V \partial_x u=\frac{\Delta x V}{2}\left(2^{\Delta \ell}-\lambda V\right) \partial_{x x} u+O\left(\Delta x^2\right), & \text { for } \hat{s}=0 \\ \partial_t u+V \partial_x u=\frac{\Delta x V}{2}(1-\lambda V) \partial_{x x} u-\frac{\Delta x^2 V}{6}\left(1-\lambda^2 V^2\right) \partial_x^3 u+& \\ \ \ \ \ \ \ \ \ \ \ \frac{\Delta x^3 V}{24}\left(-3 \Delta \ell 2^{2 \Delta \ell}+2^{2 \Delta \ell}-\lambda^3 V^3\right) \partial_x^4 u+O\left(\Delta x^4\right), & \text { for } \hat{s}=1 \end{array} \]

Modified equations including MRA

This result establishes at which order the modified equations of the reference scheme are perturbed by the introduction of the adaptive scheme. However, it does not characterize the terms in the modified equations above order \(2\hat{s}+1\) in \(\Delta x\) (symbolic computations).

• Lax-Wendroff scheme (original) \[ {\color{blue}{\partial_t u+V \partial_x u=-\frac{\Delta x^2 V}{6}\left(1-\lambda^2 V^2\right) \partial_x^3 u+O\left(\Delta x^3\right)}} \]
• Lax-Wendroff scheme with MRA \[ \begin{array}{lr} \partial_t u+V \partial_x u=\frac{\Delta x \lambda V^2}{2}\left(2^{\Delta \ell}-1\right) \partial_{x x} u+O\left(\Delta x^2\right), & \text { for } \hat{s}=0 \\ \partial_t u+V \partial_x u=-\frac{\Delta x^2 V}{6}\left(1-\lambda^2 V^2\right) \partial_x^3 u+&\\ \ \ \ \ \ \ \ \ \ \ \frac{\Delta x^3 \lambda V^2}{24}\left(-3 \Delta \ell 2^{2 \Delta \ell}+2^{2 \Delta \ell}-\lambda^2 V^2\right) \partial_x^4 u+O\left(\Delta x^4\right), & \text { for } \hat{s}=1 \end{array} \]

Theoretical results on the global error

Theorem 2

Assume that

• The reference scheme satisfies the restricted stability condition \(\|E\| \leq 1\)
• The Harten-like scheme satisfies the restricted stability condition \(\left\|\bar{E}_{\Lambda}\right\| \leq 1\) for any \(\Lambda\).

Then, for smooth solution, in the limit \(\Delta x \rightarrow 0\) (i.e. \(\bar{\ell} \rightarrow+\infty\) ) and for \(\Delta \underline{\ell}=\bar{\ell}-\underline{\ell}\) kept fixed, we have the error estimate

\[ \left\|\mathbf{v}_{\bar{\ell}}^n-\mathbf{w}_{\bar{\ell}}^n\right\| \leq C_{t r} t^n \Delta x^{2 \hat{s}+1}+C_{m r} \frac{t^n}{\lambda \Delta x} \epsilon \]

where \(C_{t r}=C_{t r}\left(\bar{\ell}-\underline{\ell},\left(\phi_\alpha\right)_\alpha, \lambda, \hat{s}, V\right)\) and \(C_{m r}=C_{m r}\left(\bar{\ell}-\underline{\ell},\left(\phi_\alpha\right)_\alpha, \lambda, \hat{s}, s, V\right)\). \[ \left\|\mathbf{u}_{\bar{\ell}}^n-\mathbf{w}_{\bar{\ell}}^n\right\| \leq C_{r e f} t^n \Delta x^\theta+C_{t r} t^n \Delta x^{2 \hat{s}+1}+C_{m r} \frac{t^n}{\lambda \Delta x} \epsilon \]

Comments on theorem

• The error estimate contains three contributions: the discretization error of the reference scheme, the perturbation error between the reference and the adaptive scheme, and the thresholding error coming from the multiresolution
• The constant \(C_{\mathrm{tr}}\) generally grows exponentially with \(\bar{\ell}-\underline{\ell}\), sometimes also involving linear terms, i.e. \(\hat{s}=1\). We have the following cases:
  • \(\theta<2 \hat{s}+1\). The error of the reference scheme dominates the perturbation introduced by the adaptive scheme \(\left\|\mathbf{u}_{\bar{\ell}}^N-\mathbf{w}_{\bar{\ell}}^N\right\| \leq C_{\mathrm{ref}} T \Delta x^\theta+C_{\mathrm{mr}} \frac{T}{\lambda \Delta x} \epsilon\). A thresholding error of the same order as the reference error \(\epsilon \sim \Delta x^{\theta+1}\).
  • \(\theta=2 \hat{s}+1\). The error of the reference scheme and the perturbation order are comparable (first example!) We have \(\left\|\mathbf{u}_{\bar{\ell}}^N-\mathbf{w}_{\bar{\ell}}^N\right\| \leq\left(C_{\mathrm{ref}}+C_{\mathrm{tr}}\right) T \Delta x^\theta+C_{\mathrm{mr}} \frac{T}{\lambda \Delta x} \epsilon\).
  • \(\theta>2 \hat{s}+1\). The perturbation introduced by the adaptive scheme dominates the error of the reference scheme. Therefore, multiresolution introduces a large perturbation that yields a different convergence rate. We have \(\left\|\mathbf{u}_{\bar{\ell}}^N-\mathbf{w}_{\bar{\ell}}^N\right\| \leq C_{\mathrm{tr}} T \Delta x^{2 \hat{s}+1}+C_{\mathrm{mr}} \frac{T}{\lambda \Delta x} \epsilon\), thus \(\epsilon \sim \Delta x^{2 \hat{s}+2}\) (AMR !)

Assume that for the choice of \(\bar{\ell}-\underline{\ell}\) at hand, we have \(C_{\mathrm{tr}} \sim C_{\mathrm{ref}}\), then w

How to compute fluxes at the finest level

As we have seen, calculating the flux at the finest level is crucial to obtaining good error estimates. But how does this work in practice?

Let’s take a simple example.

How to compute fluxes at the finest level

Let’s imagine that our finest level is 4 levels away from where we are.

How to compute fluxes at the finest level

Now let’s imagine that we want to calculate the flow using this small cell on the left. We use an operator with s = 1, so we need 3 cells on the level below to calculate it. These 3 cells need 4 cells on the level below to be calculated. We can repeat the process indefinitely and we’ll still need 4 cells on the bottom level.

We can determine the coefficients of our linear application to go from our level to any cell on a higher level. There’s no need for an intermediate level.

How to compute fluxes at the finest level

We can do the same for the right-hand cell. We can see that the cells used are not exactly the same.

Now, if we wanted to reconstruct all the cells of the finest level, we’d only need these 5 cells, with different coefficients depending on the cell we’re trying to reconstruct.

Burgers results

Burgers results (Error for scheme order 1)

Burgers results (Error for scheme order 1)

Burgers results (Error for scheme order 1)

Burgers results (MR solution and level for scheme order 1)

Burgers results (MR solution and error for scheme order 1)

Burgers results (MR+MLF sol. and level for scheme order 1)

Burgers results (MR+MLF sol. and error for scheme order 1)

Burgers results (Error for scheme order 1)

Burgers results (MR solution and level for scheme order 1)

Burgers results (MR solution and error for scheme order 1)

Burgers results (MR+MLF sol. and level for scheme order 1)

Burgers results (MR+MLF sol. and error for scheme order 1)

Burgers results (Error for scheme order 3)

Burgers results (Error for scheme order 3)

Burgers results (MR solution and level for scheme order 3)

Burgers results (MR solution and error for scheme order 3)

Burgers results (MR+MLF sol. and level for scheme order 3)

Burgers results (MR+MLF sol. and error for scheme order 3)

Burgers results (MR VS MR+MLF error for scheme order 3)

Burgers 2D results (MR+MLF solution order 1)

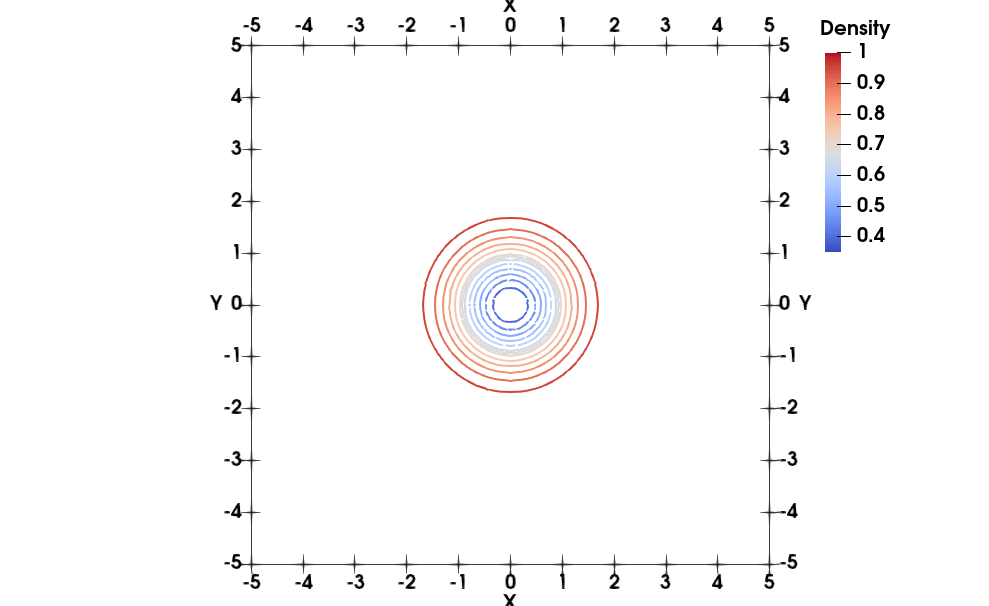

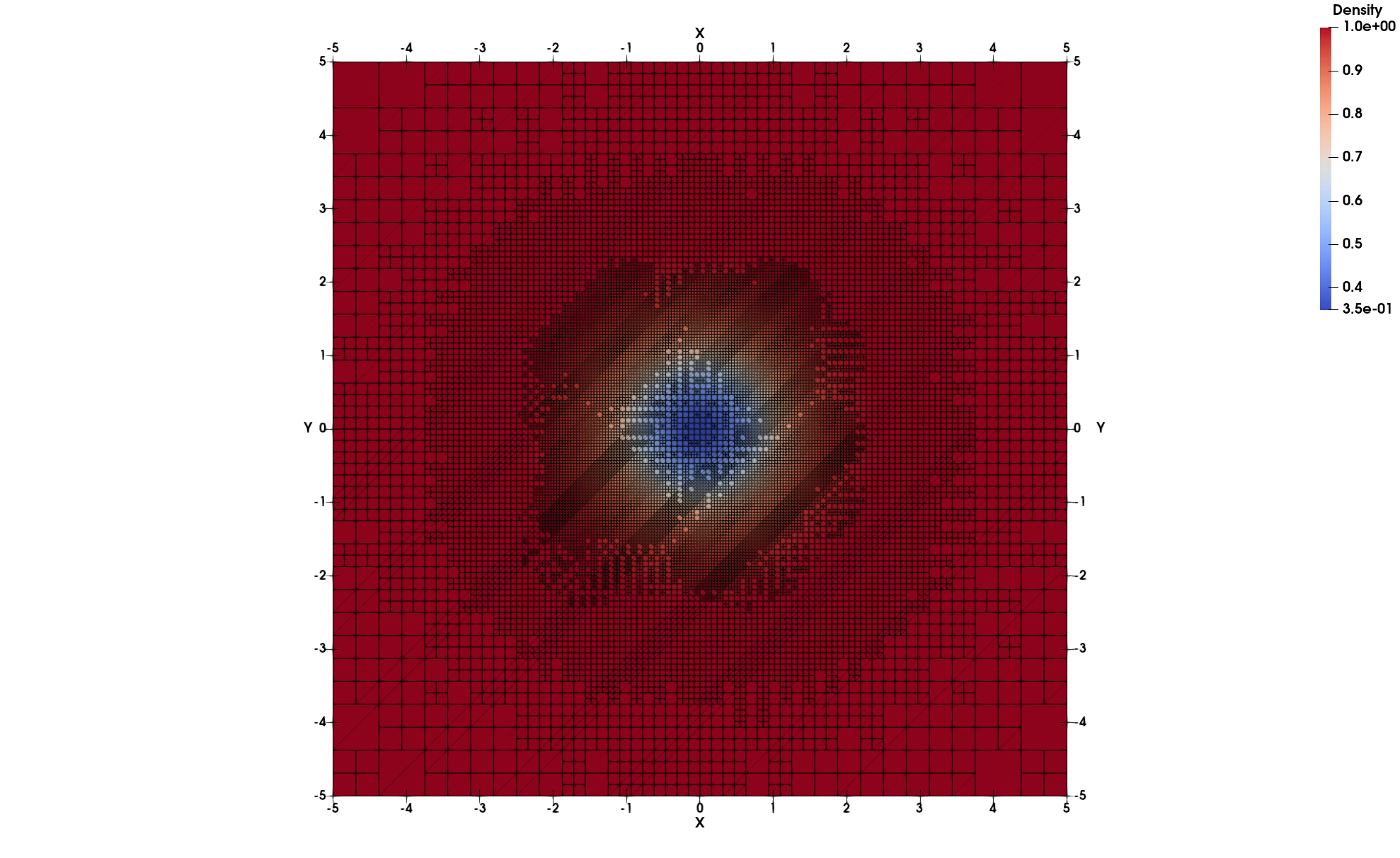

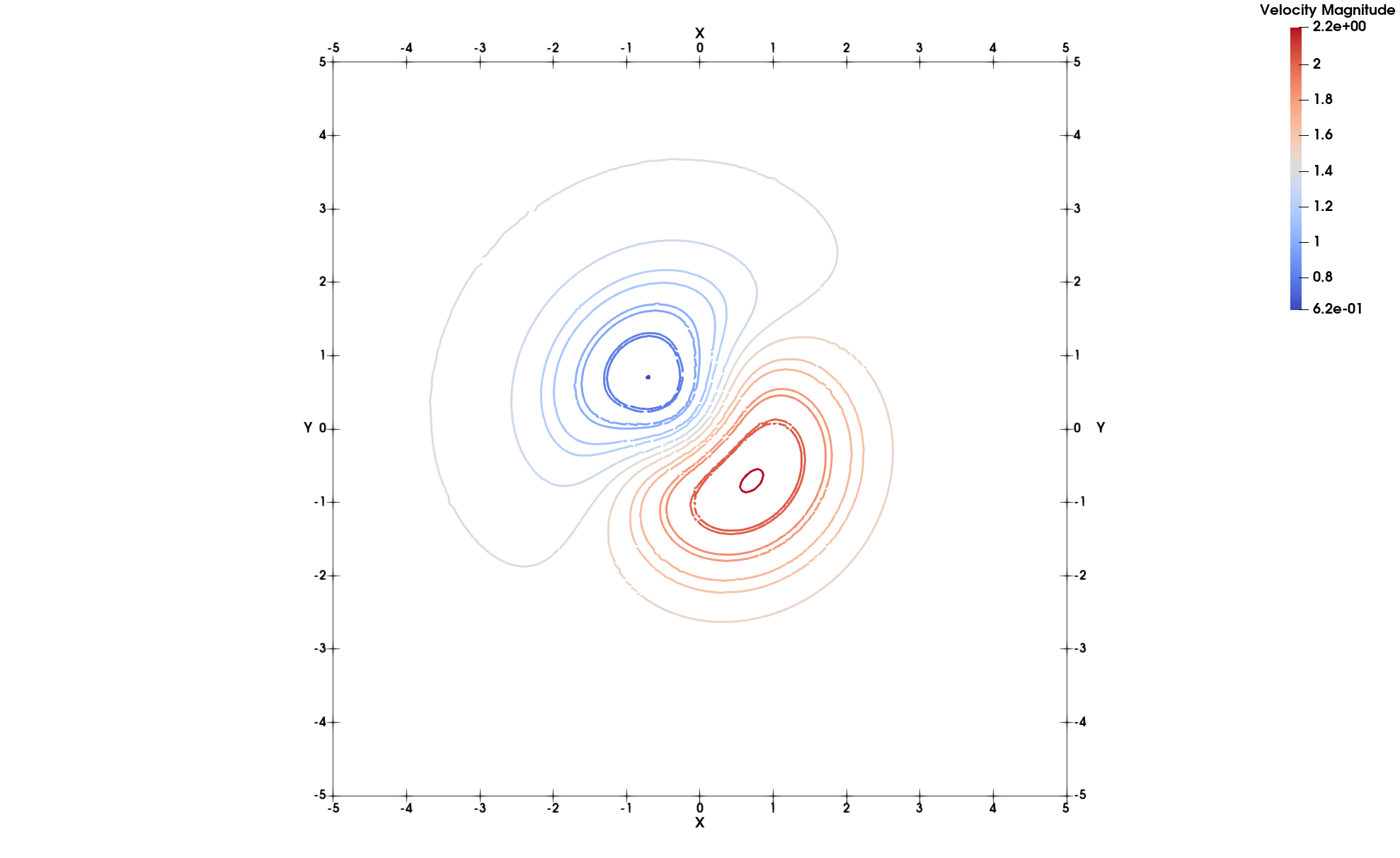

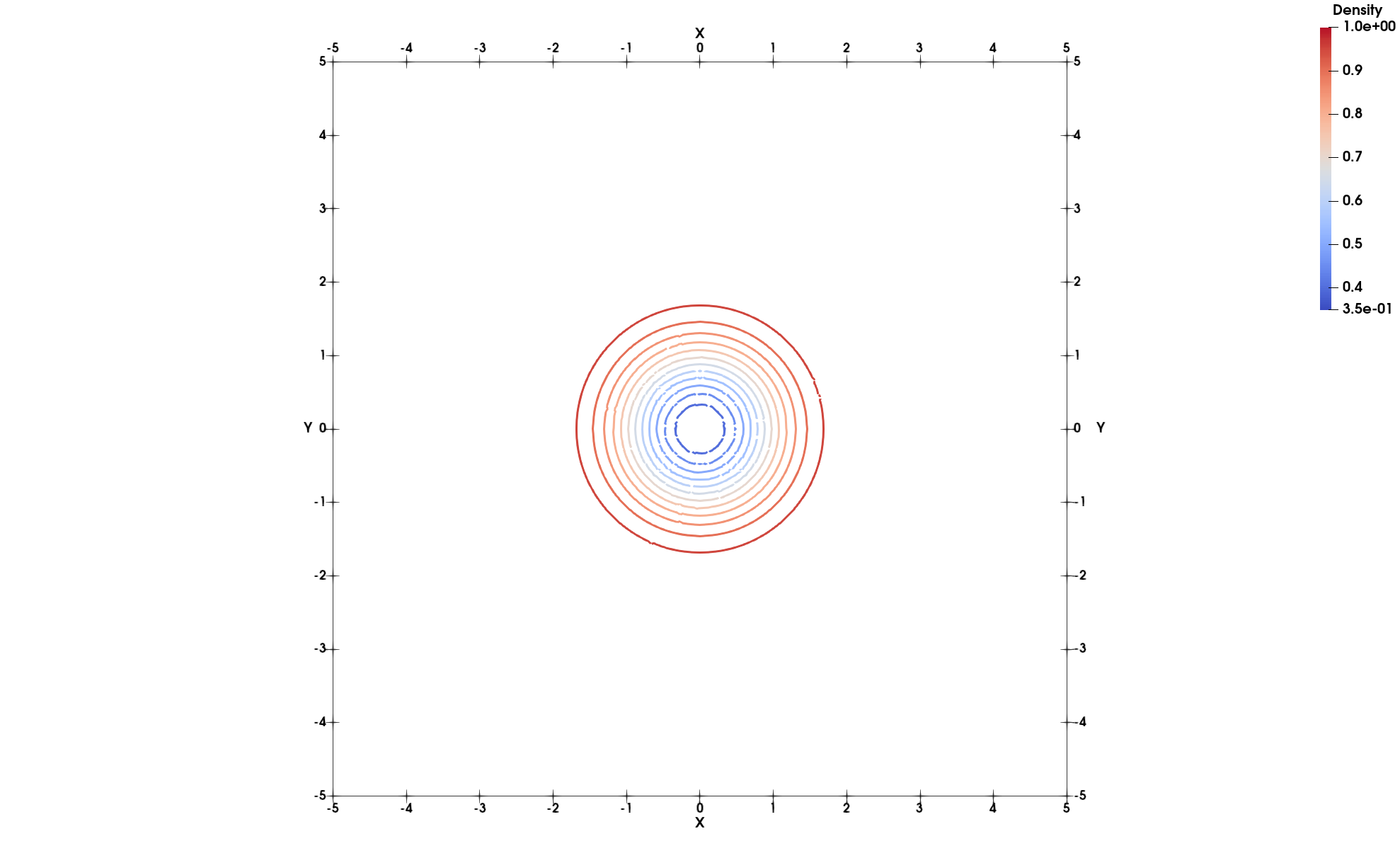

Euler 2D results (MR+MLF solution order 3 (OSMP scheme))

Euler 2D results (MR+MLF solution order 3 (OSMP scheme))

Conclusion

• Analysis of mesh adaptation completed for convection - extension to reaction and diffusion
  • Link with AMR important in terms of accuracy of the simulations
• Conducting simulation with strict error control requires adpative multiresolution
  • Data structure is a key issue - see presentation of L. Gouarin
  • New generation of coupled splitting / ImEx schemes in samurai
• Link through the code and developper team to various applications

samurai
